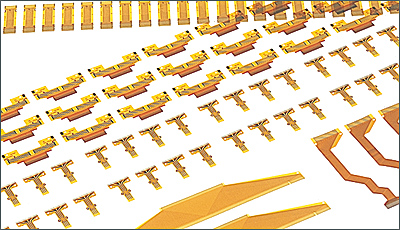

Single-face FPC

A standard type FPC which has a copper foil layer on one side of the polyimide film (Polyester film)



  • The thin FPC enables free folding and efficient use of the embedding space.
  • It enables lightweight design of electronic devices, and is suitable for solder mounting parts.
  • We recommend polyester film (PET) base material for the FPC where the heat resistance of polyimide is not necessary.
  • The ANISO option, which can be connected by heat adhesion, is available. (can be stored at room temperature)

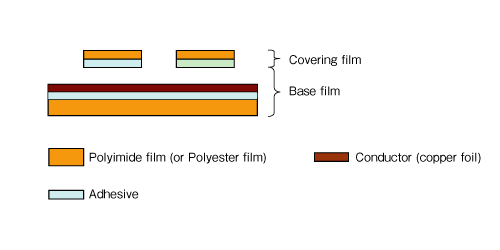

Basic structure

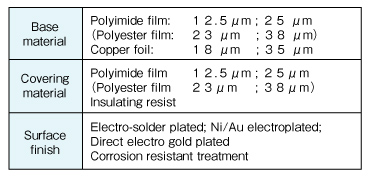

Standard specifications
