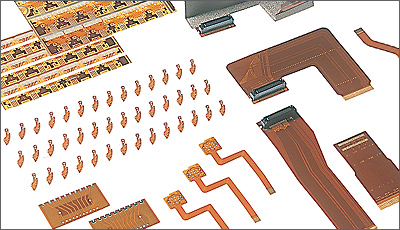

Double-face FPC (copper through-hole type)

This is a standard type with copper foil on both-sides of polyimide film.
The whole manufacturing process from the material rolls to the final product is carried out
in our own factory, which assures quick delivery and good cost performance.

Features

  • It enables more complex wiring compared to the single-face FPC.
  • It enables part mounting on both sides, providing a more efficient use of space.
  • The standard specifications are double-face copper foil FPC. We also have double-face FPC, with copper foil on one side and silver on the other side, which makes the most use of our printing technology, with a cost advantage. Please inquire.

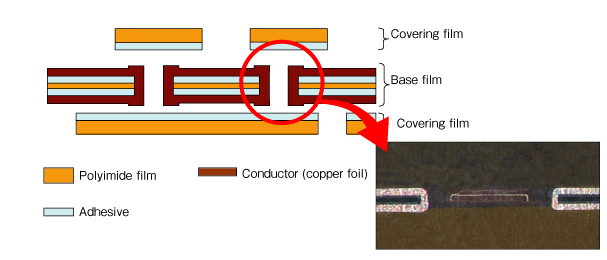

Basic structure

- Double-face copper foil/Copper through-hole

Standard specifications
