Flexible Copper Clad Laminate(Two-Layer CCL)

Non-adhesive for NGI Flex two-layer CCL was made possible by our original technology.
As semiconductor becomes highly dense and integrated, demand for minimum dimension change, high flexibility,highly densified mounting, etc., is increasing.
"NGI Flex two-layer CCL" will meet those requirements.

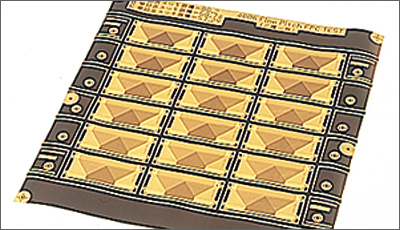

Single-face Two-Layer FPC

Features

  • It has an excellent heat-resistance due to the absence of adhesive layer.
  • It has a superior folding endurance and flexural strength.
  • It has an excellent stability of dimension under high temperature.
  • Super fine pitch is applicable.

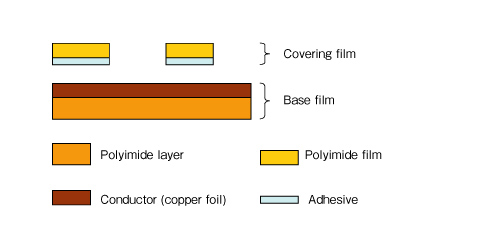

Basic structure

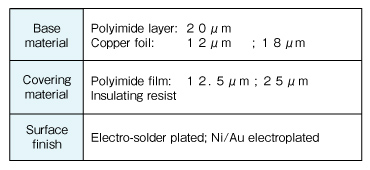

Standard specifications



Double-face Two-Layer FPC

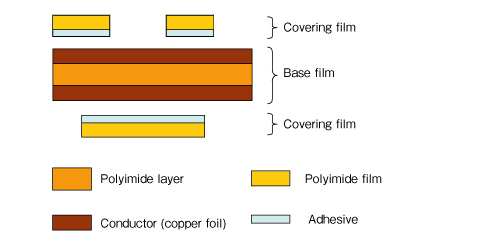

Basic structure


Standard specifications
